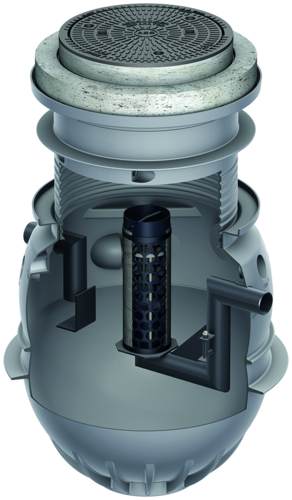

Oleopator P
Nominell kapacitet | Inlopp/utlopp enligt DIN EN 877 | Slamfång | Dimensioner | |||
---|---|---|---|---|---|---|
D | H | H1 | H2 | |||
[l] | [mm] | [mm] | [mm] | [mm] | ||
NS 3 | DN 100 | 450 | 110 | 1377 | 1020 | 1000 |
NS 3 | DN 100 | 670 | 110 | 1594 | 1230 | 1210 |
NS 3 | DN 100 | 950 | 110 | 1865 | 1500 | 1480 |
NS 6 | DN 150 | 660 | 160 | 1594 | 1210 | 1190 |
NS 6 | DN 150 | 1210 | 160 | 2129 | 1740 | 1720 |
NS 8 | DN 150 | 820 | 160 | 1865 | 1480 | 1460 |
NS 10 | DN 150 | 1080 | 160 | 2129 | 1740 | 1720 |
