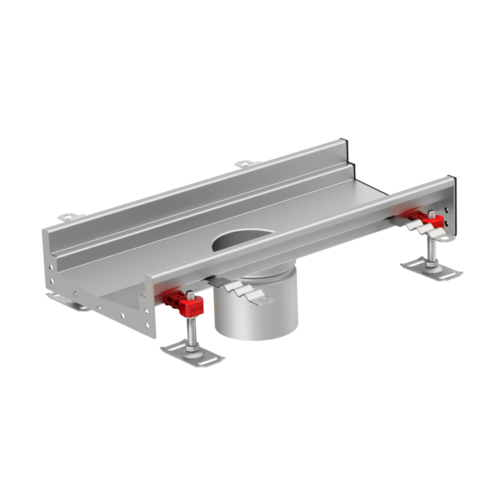

Ränna med mittplacerat bottenutlopp

Channel dimensionsMaterialArt.

nr
LHD
[mm][mm][mm]
500601101.4301414307
1.4404414315
701101.4301414308
1.4404414316
801101.4301414309
1.4404414317
901101.4301414310
1.4404414318
1001101.4301414311
1.4404414319
1101101.4301414312
1.4404414320
1201101.4301414313
1.4404414321
1401101.4301414314
1.4404414322
1000601101.4301414323
1.4404414331
701101.4301414324
1.4404414332
801101.4301414325
1.4404414333
901101.4301414326
1.4404414334
1001101.4301414327
1.4404414335
1101101.4301414328
1.4404414336
1201101.4301414329
1.4404414337
1401101.4301414330
1.4404414338
500601421.4301409916
1.4404409924
701421.4301409917
1.4404409925
801421.4301409918
1.4404409926
901421.4301409919
1.4404409927
1001421.4301409920
1.4404409928
1101421.4301409921
1.4404409929
1201421.4301409922
1.4404409930
1401421.4301409923
1.4404409931
1000601421.4301409948
1.4404409956
701421.4301409949
1.4404409957
801421.4301409950
1.4404409958
901421.4301409951
1.4404409959
1001421.4301409952
1.4404409960
1101421.4301409953
1.4404409961
1201421.4301409954
1.4404409962
1401421.4301409955
1.4404409963
1270602001.4301414243
1.4404414251
702001.4301414244
1.4404414252
802001.4301414245
1.4404414253
902001.4301414246
1.4404414254
1002001.4301414247
1.4404414255
1102001.4301414248
1.4404414256
1202001.4301414249
1.4404414257
1402001.4301414250
1.4404414258
Channel dimensionsMaterialArt.

nr
LHD
500 mm60 mm110 mm1.4301414307
500 mm60 mm110 mm1.4404414315
500 mm70 mm110 mm1.4301414308
500 mm70 mm110 mm1.4404414316
500 mm80 mm110 mm1.4301414309
500 mm80 mm110 mm1.4404414317
500 mm90 mm110 mm1.4301414310
500 mm90 mm110 mm1.4404414318
500 mm100 mm110 mm1.4301414311
500 mm100 mm110 mm1.4404414319
500 mm110 mm110 mm1.4301414312
500 mm110 mm110 mm1.4404414320
500 mm120 mm110 mm1.4301414313
500 mm120 mm110 mm1.4404414321
500 mm140 mm110 mm1.4301414314
500 mm140 mm110 mm1.4404414322
1000 mm60 mm110 mm1.4301414323
1000 mm60 mm110 mm1.4404414331
1000 mm70 mm110 mm1.4301414324
1000 mm70 mm110 mm1.4404414332
1000 mm80 mm110 mm1.4301414325
1000 mm80 mm110 mm1.4404414333
1000 mm90 mm110 mm1.4301414326
1000 mm90 mm110 mm1.4404414334
1000 mm100 mm110 mm1.4301414327
1000 mm100 mm110 mm1.4404414335
1000 mm110 mm110 mm1.4301414328
1000 mm110 mm110 mm1.4404414336
1000 mm120 mm110 mm1.4301414329
1000 mm120 mm110 mm1.4404414337
1000 mm140 mm110 mm1.4301414330
1000 mm140 mm110 mm1.4404414338
500 mm60 mm142 mm1.4301409916
500 mm60 mm142 mm1.4404409924
500 mm70 mm142 mm1.4301409917
500 mm70 mm142 mm1.4404409925
500 mm80 mm142 mm1.4301409918
500 mm80 mm142 mm1.4404409926
500 mm90 mm142 mm1.4301409919
500 mm90 mm142 mm1.4404409927
500 mm100 mm142 mm1.4301409920
500 mm100 mm142 mm1.4404409928
500 mm110 mm142 mm1.4301409921
500 mm110 mm142 mm1.4404409929
500 mm120 mm142 mm1.4301409922
500 mm120 mm142 mm1.4404409930
500 mm140 mm142 mm1.4301409923
500 mm140 mm142 mm1.4404409931
1000 mm60 mm142 mm1.4301409948
1000 mm60 mm142 mm1.4404409956
1000 mm70 mm142 mm1.4301409949
1000 mm70 mm142 mm1.4404409957
1000 mm80 mm142 mm1.4301409950
1000 mm80 mm142 mm1.4404409958
1000 mm90 mm142 mm1.4301409951
1000 mm90 mm142 mm1.4404409959
1000 mm100 mm142 mm1.4301409952
1000 mm100 mm142 mm1.4404409960
1000 mm110 mm142 mm1.4301409953
1000 mm110 mm142 mm1.4404409961
1000 mm120 mm142 mm1.4301409954
1000 mm120 mm142 mm1.4404409962
1000 mm140 mm142 mm1.4301409955
1000 mm140 mm142 mm1.4404409963
1270 mm60 mm200 mm1.4301414243
1270 mm60 mm200 mm1.4404414251
1270 mm70 mm200 mm1.4301414244
1270 mm70 mm200 mm1.4404414252
1270 mm80 mm200 mm1.4301414245
1270 mm80 mm200 mm1.4404414253
1270 mm90 mm200 mm1.4301414246
1270 mm90 mm200 mm1.4404414254
1270 mm100 mm200 mm1.4301414247
1270 mm100 mm200 mm1.4404414255
1270 mm110 mm200 mm1.4301414248
1270 mm110 mm200 mm1.4404414256
1270 mm120 mm200 mm1.4301414249
1270 mm120 mm200 mm1.4404414257
1270 mm140 mm200 mm1.4301414250
1270 mm140 mm200 mm1.4404414258

Sil (för utlopp 110 mm)

Suitable for
  • ACO spaltränna 20
  • ACO modulboxränna 125
  • ACO modulboxränna 200
  • ACO modulspaltränna 20
Beskrivning
  • Rostfritt stål
  • Materialklass 1.4301 (304)

Sil (för utlopp 110 mm)

Suitable for
  • ACO spaltränna 20
  • ACO modulboxränna 125
  • ACO modulboxränna 200
  • ACO modulspaltränna 20
Beskrivning
  • Rostfritt stål
  • Materialklass 1.4404 (316L)

Vattenlås

Suitable for
  • ACO spaltränna 20
  • ACO modulboxränna 125
  • ACO modulboxränna 200
  • ACO modulspaltränna 20
Beskrivning

Rostfritt stål

  • Vattentätning 50 mm
  • Materialklass 1.4301 (304)

Vattenlås

Suitable for
  • ACO spaltränna 20
  • ACO modulboxränna 125
  • ACO modulboxränna 200
  • ACO modulspaltränna 20
Beskrivning

Rostfritt stål

  • Vattentätning 50 mm
  • Materialklass 1.4404 (316L)
