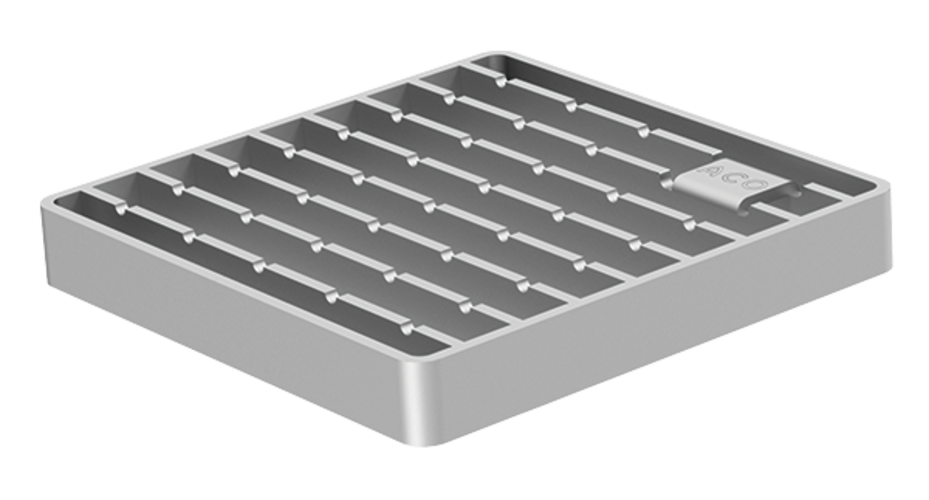

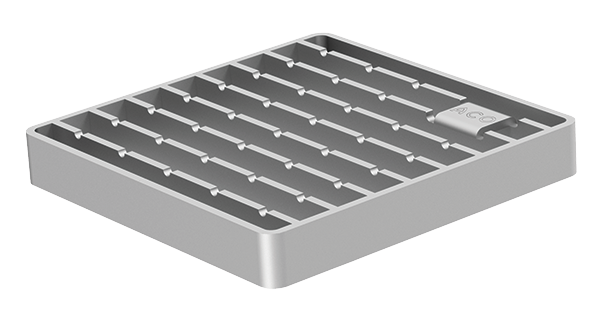

Steggaller

klass: R 50

Grating dimensionsMaterialArt.

nr
GallerbreddLängd
[mm][mm]
1681681.4301416912
1.4404416913
2182181.4301416914
1.4404416915

klass: M 125

Grating dimensionsMaterialArt.

nr
GallerbreddLängd
[mm][mm]
1681681.4301408093
1.4404408193
2182181.4301408028
1.4404408128

klass: N 250

Grating dimensionsMaterialArt.

nr
GallerbreddLängd
[mm][mm]
1681681.4301408043
1.4404408143
2182181.4301408044
1.4404408144
Grating dimensionsklassMaterialArt.

nr
GallerbreddLängd
168 mm168 mmR 501.4301416912
168 mm168 mmR 501.4404416913
168 mm168 mmM 1251.4301408093
168 mm168 mmM 1251.4404408193
218 mm218 mmR 501.4301416914
218 mm218 mmR 501.4404416915
218 mm218 mmM 1251.4301408028
218 mm218 mmM 1251.4404408128
168 mm168 mmN 2501.4301408043
168 mm168 mmN 2501.4404408143
218 mm218 mmN 2501.4301408044
218 mm218 mmN 2501.4404408144
